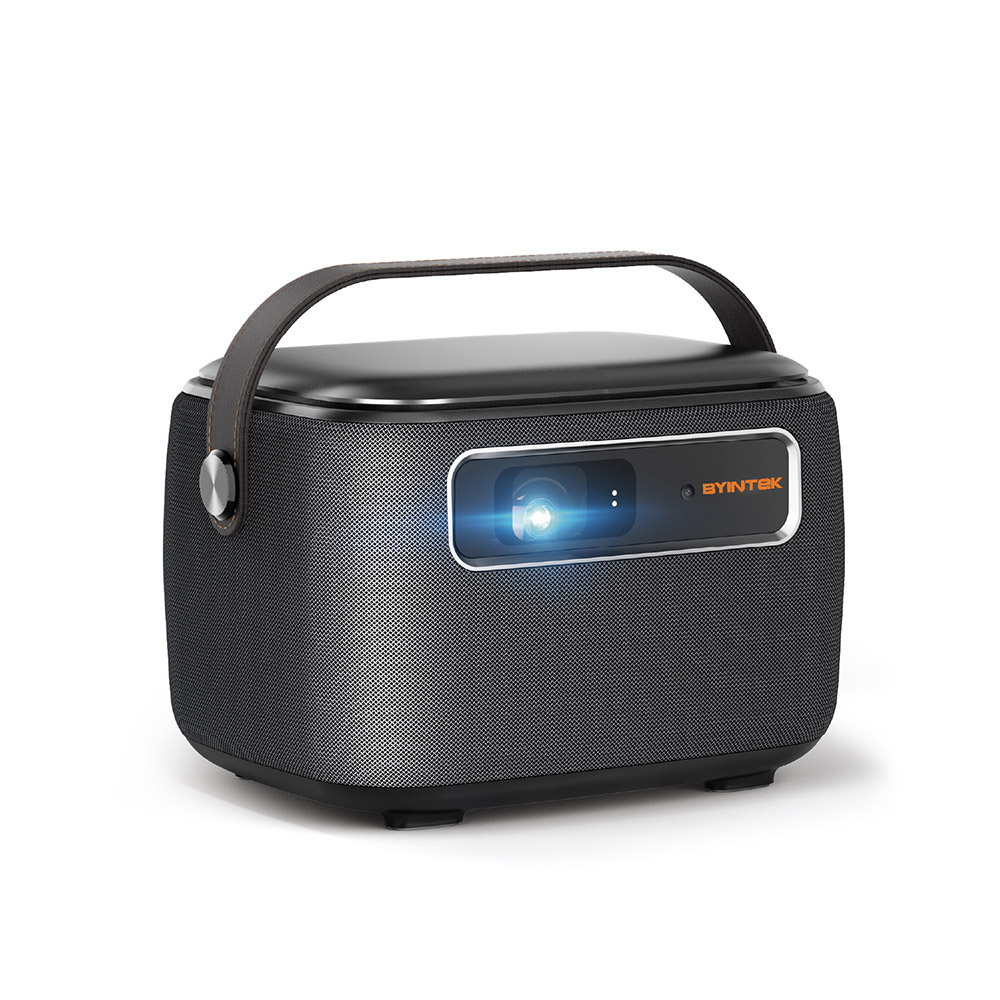

UFO R20 Max

① Perfect Google TV System

② Built-in Battery for Outdoor

③ Super Brightness 750ANSI for Daylight

④ Real Shutter 3D and Design with Fabric Living Style

⑤ Faster Auto Focus ＆ WiFi Display

System

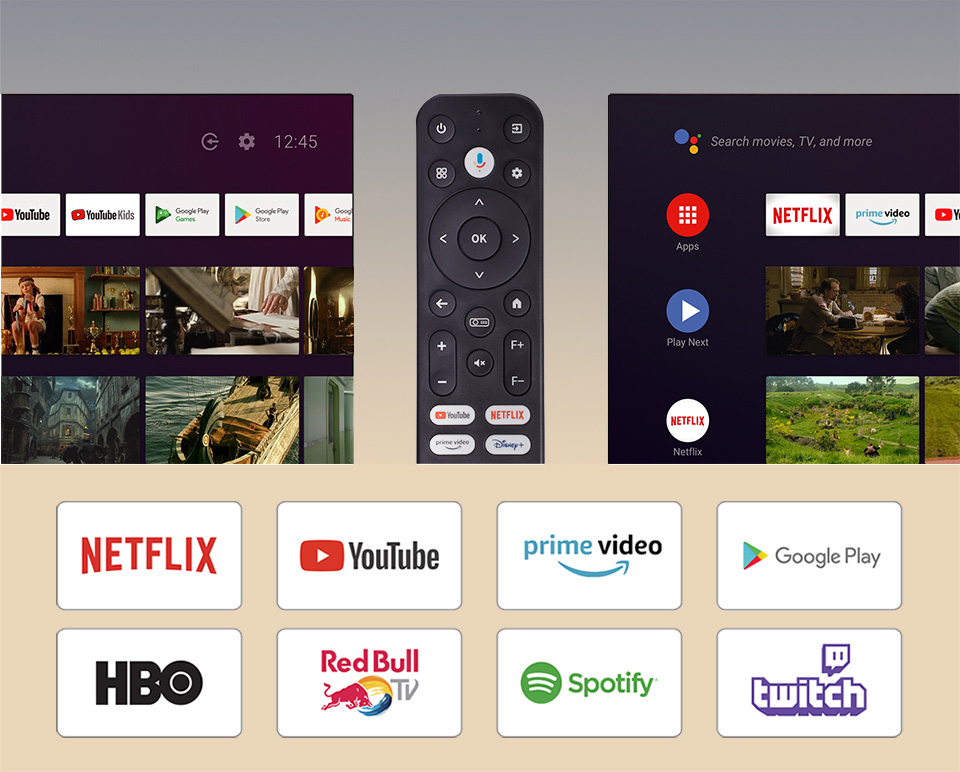

● Android 11.0 TV System

● WiFi: 2.4G & 5G dual-band WiFi

● Bluetooth: Bluetooth5.0

● CPU: MTK Contex A53 4 core decode 4K H.265/AVS2 4K*2K/30HZ

● GPU: Mali-G52

● Memory: RAM 2G DDR3, ROM 16GB eMMC

● WiFi-display: Support Airplay, Miracast, DLNA.(EShare is pre-installed)

● Supports multiple languages: English, Japanese, French, German, Italian, Spanish, Chinese, Traditional Chinese, Korean, Russian, Vietnam, Portuguese, etc.

Optical specifications

● Light Engine: TI 0.45 inch WVGA DMD

● Light Source: OSRAM RGB 3LED

● Light Lifetime: 50000 hours

● Brightness: 750 ANSI lumens

● Contrast Ratio: 15000:1

● Resolution: 1280*800, Max support 4K

● Aspect Ratio: 16:10/16:9/4:3

● Off-aixs:100%

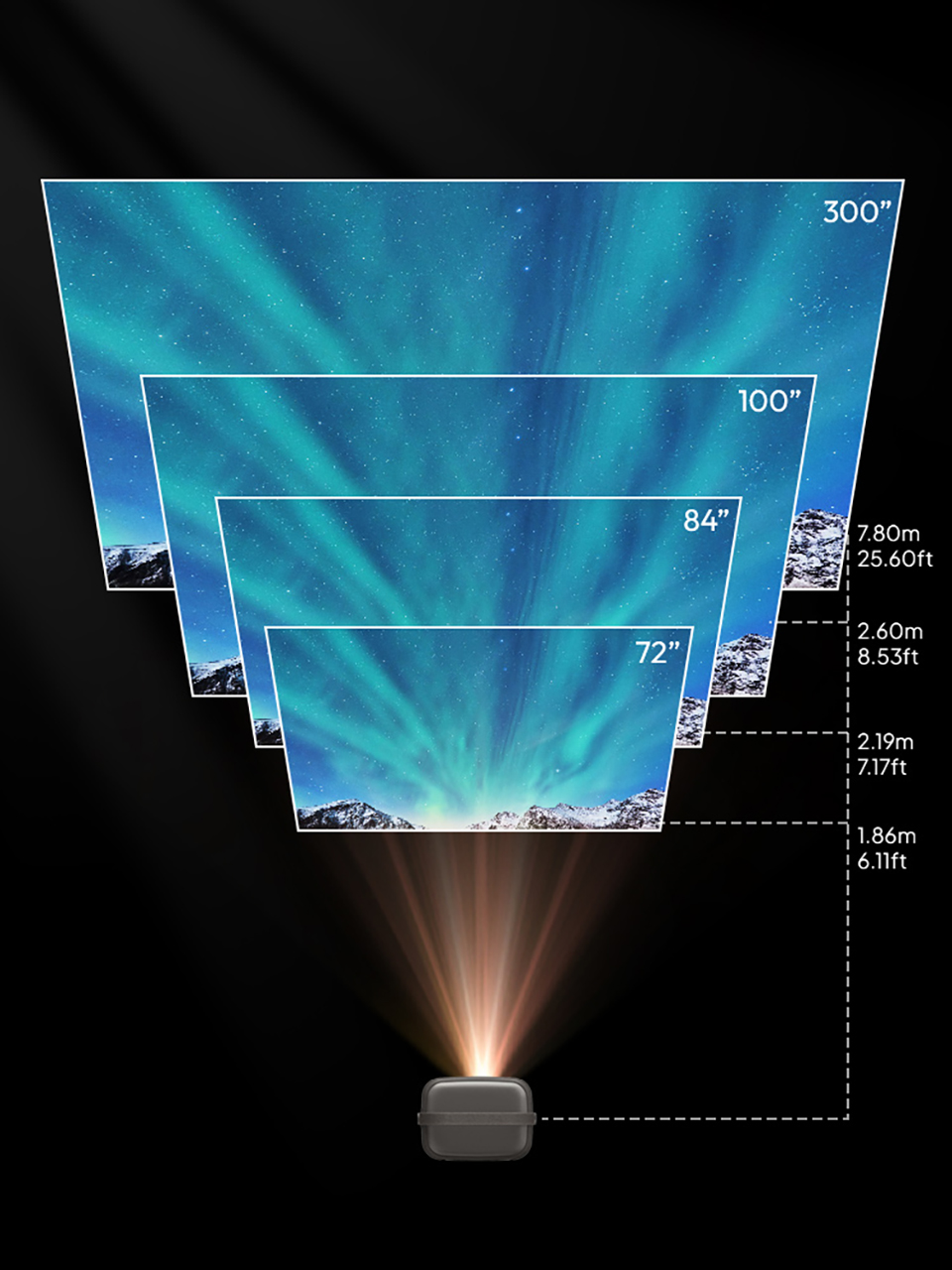

● Throw Ratio: 1.2: 1

● Project Dimension: 30-300”

● Project Distance: 1- 8m

● Focus Mode: Auto-focus

● Zoom: Remote electric zoom

● 6D Keystone: Auto/Manual keystone, Manual corner keystone

Battery

● Battery: Built-in 11.1V 15600mAh Li-ion battery, Battery life: 1.5~2.5 hours

Interface

● HD 2.0 *1;

● USB 2.0 *1, USB 3.0*1 (Read Data from USB SSD Hard Drive, Support Mouse, and Keyboard Control)

● Network*1 (Connect ethernet)

● 3.5mm Headphone jack (Audio Out ) *1

● DC-in 19V/3.42A (DC 5.5mm*2.5mm)

Others specifications

● Speaker: 5W*2, Stereo output

● Projection Mode: Front/ Rear/ Ceiling front/ Ceiling rear

● Keystone Correction: Auto/Manual Vertical keystone, Manual Corner Keystone

● Power Consumption: 65W

● Device: 180*140*128mm

● Weight: 1.43kg

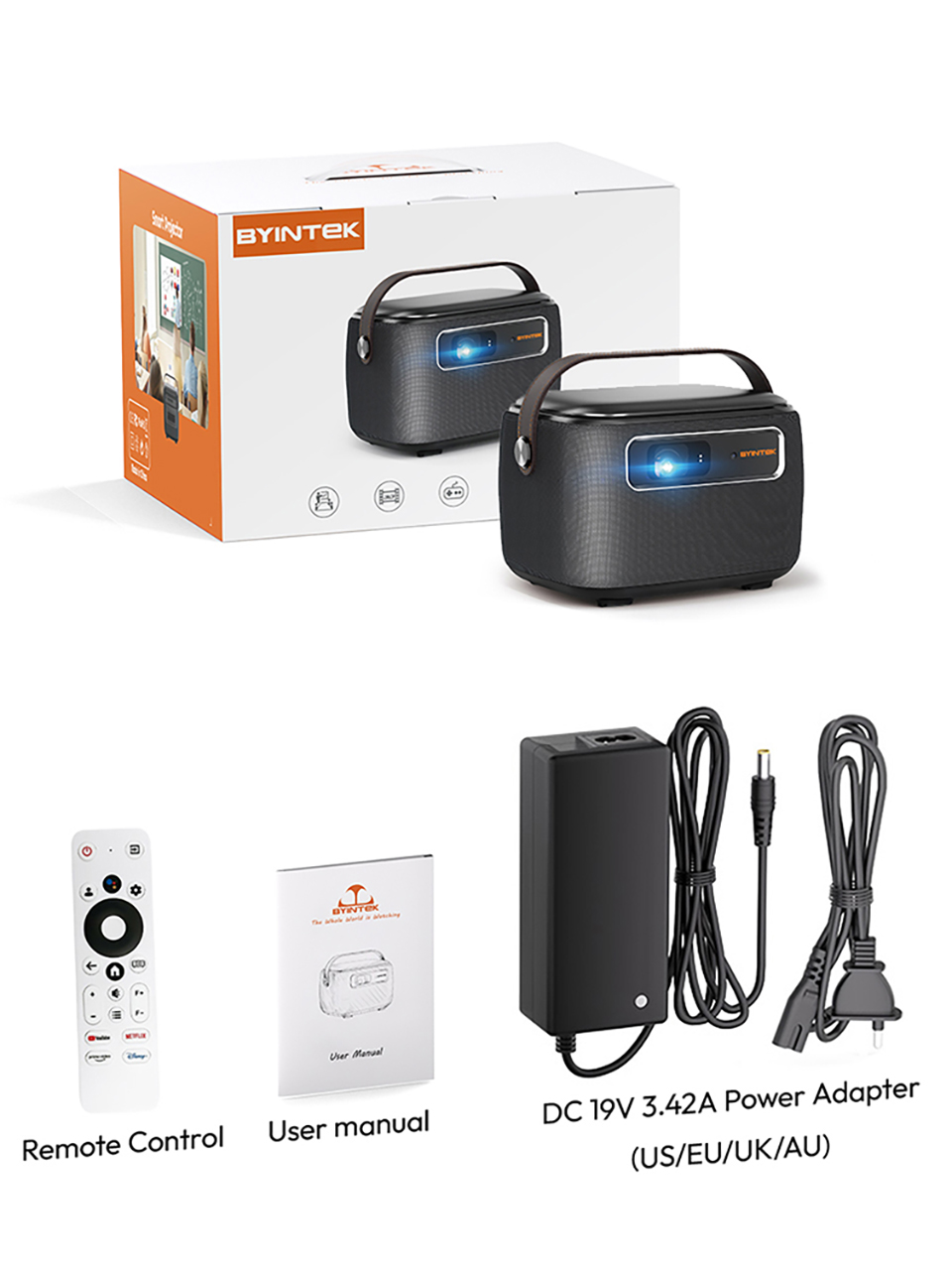

Package list

1 pc * R20 Max Projector

1 pc * Power adapter

1 pc * Power Cable

1 pc * IR remote control

1 pc * User manual
