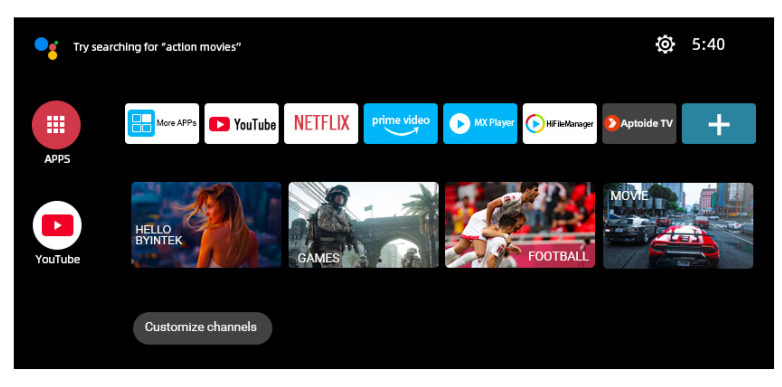

About K18 New UI Smart Version android OS firmware upgrade

K18 android projector support OTA online update Android firmware. Every time we update the firmware, after uploading to the cloud server, K25 Smart Version will prompt to update, Operation video guide: https://youtu.be/zC4GxpWZMeQ

It can also be upgraded via U disk

Step:

1. You can click the icon below to download the firmwareof K18 Android. UnZip File, The name of the firmware is “3H035_YG00.bin”. Do not change the name of the file, otherwise the projector will not recognize it.
2. Copy the firmware to the root directory of the U disk. Note: Do not put it in other folders.
3. Insert the U disk into the second USB port of the projector
4. Open “setting” – “system update” – “local update” successively,  and then upgrade according to the prompt. Wait for the projector to restart automatically and use it after the upgrade is completed.

Note: the upgrade process must not be interrupted.

Firmware upgrade operation guide video: https://youtu.be/GZ_yHmfF7Vw

If you are unable to access the Android interface, please follow the steps below to upgrade using a forced upgrade method.

1. Prepare a USB drive smaller than 32GB.

After downloading the firmware, UnZip File

Copy it to the root directory of the USB drive. Be careful not to put the firmware in the folder.

3. Insert the USB drive into the projector’s USB port.

Then connect the power cord of the projector.

5. Press and hold the power on key until the upgrade progress bar pops up on the screen, and wait for the automatic upgrade.

K18 Smart Version Android firmware download （New UI firmware）

K18 system firmware for new UI >>

Resolve sound delay issues

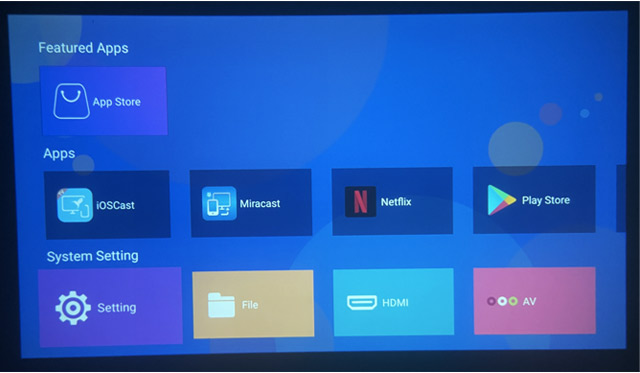

About K18 Old UI Smart Version android OS firmware upgrade

K18 Smart Version android projector support OTA online update Android firmware. Every time we update the firmware, after uploading to the cloud server, K18 Smart Version will prompt to update, Operation video guide: https://youtu.be/2VocS93MvUI

If the OTA upgrade cannot be done online, It can also be upgraded via U disk

Step:

1. Turn on the projector first
2. First check the Android system version of the projector according to the video guide, and download the corresponding firmware program according to the version.

Operating the projector, click “setting”-“update”-choose “Online update” , The version of the projector will appear, such as “20210830”,”20211013″

View the system version guide video: https://youtu.be/2VocS93MvUI

3. You can click the icon below to download the firmware of K18 Smart Version Android. The downloaded file is a compressed file, don’t unzip. The name of the firmware is “update.zip”. Do not change the name of the file, otherwise the projector will not recognize it.
4. Copy the firmware to the root directory of the U disk (Only supports FAT32 format U disk). Note: Do not put it in other folders.
5. Insert the U disk into the second USB port of the projector
6. Operating the projector, click “setting”-“update”-choose “Local update”-Press the “OK” button several times to enter the upgrade
7. Wait for the upgrade to be completed, and it will automatically shut down and start up

Note: The sequence of upgrade operations cannot be disrupted, and the upgrade process must not be interrupted.

Firmware upgrade operation guide video: https://youtu.be/OL-kB6e73ek

Firmware version: Upgrade from 20210830 to 20211115

K18 Smart Version Android firmware download 01 (20211115)

Firmware version: Upgrade from 20211013 to 20211115

K18 Smart Version Android firmware download 02 (20211115)

If the above operation method fails to update the firmware, or the projector cannot enter the Android system when it starts up. You can follow the steps below to force the update via a USB flash drive.

Forcibly update the firmware via a USB flash drive.

Step:

1. Click the icon on the right to download the Android firmware of K18 Smart Version, the downloaded file is a compressed file, unzip it first. The name of the firmware is “usb_update.bin”. Do not change the name of the file, otherwise the projector will not recognize it.
2. Copy the firmware to the root directory of the U disk (Only supports FAT32 format U disk). Note: Do not put it in other folders.
3. Insert the U disk into the second USB port of the projector
4. Connect the power cord of the projector
5. Then press and hold the power button, the projector will display the upgrade progress bar, and then release the button.
6. Wait for the upgrade to be completed, and it will automatically shut down and start up

Note: The sequence of upgrade operations cannot be disrupted, and the upgrade process must not be interrupted.

Firmware upgrade operation guide video: https://youtu.be/3L6h9I2_ISA

About K18 Smart Version Wifi-display Function

With the development of science and technology, in the current Bluetooth function, it is no longer used for Bluetooth to transfer files. The role of Bluetooth is only to transmit sound. The Bluetooth file transfer function has been replaced by APP.

Wifi, Bluetooth, wifi-display (airplay, Miracast, DLNA) are all different functions. The effects are different.

   wifi-display function, the projector displays the image and sound of the mobile phone screen through the mirroring function of the smartphone. This is not achieved using the Bluetooth function. It is achieved through the screen mirroring function that comes with the phone.

1. ios smartphonerealizes screen mirroring via projector’s “iMirror”app

Operation instruction video connection: https://youtu.be/e-ZTEcWMhqI

2. Android smartphonesrealize screen mirroring via projector’s “Miracast”app

Operation instruction video connection: https://youtu.be/q-Yk6za9YV4

Note: Not all Android smartphones support the screen mirroring function. For smartphones that support screen mirroring, there are options similar to this in the “Settings” or “More Functions” options of the smartphone, for example: “Screen mirroing”, “Wifi-display”, “multi-screen”, “screen projection”, “play to”, “media output”, etc.

If the projector’s pre-installed screen mirroring app is not compatible with your Android smartphone, you can also download and install Airscreen, happycast and other apps that support wifi-display on the projector.

Tips：

Some video apps with copyright protection cannot support wireless projection from other devices to the projector. For example, Netflix, iTunes Movie, Google Movie, Amazon Prime do not support this function on some smartphone and computers. All Android system projectors on the market are the same.

K18 Smart Version Projector Operation Guidance Video

1. How to uninstall the APP installed on the K18 Smart Version projector?

Select the APP, press and hold the icon key “三” on the remote control with three horizontal lines, and select OK to uninstall the APP

2. How to check the system version information of BYINTEK K18 Android projector?

Operation instruction video connection: https://youtu.be/2VocS93MvUI

3. How to change the system language of BYINTEK K18 Android?

Operation instruction video connection: https://youtu.be/ji2ku6u1QRU

4. How to set the default signal source of BYINTEK K18 Android after booting, for example to HDMI by default?

Operation instruction video connection: https://youtu.be/chtcsp44fcc

5. How to operate BYINTEK K18 Smart Version to restore factory settings?

Operation instruction video connection: https://youtu.be/8n0bNpE6UJg

6. How to set BYITNEK K18 Smart Version to flip the screen image during ceiling mount or rear projection?

Operation instruction video connection: https://youtu.be/GbInKMg5uzQ

7. How to adjust the corner keystone correction of BYITNEK K18 Smart Version to realize projection from the side?

Operation instruction video connection: https://youtu.be/XRWSj5YxgR8

8. How to adjust the electronic zoom (screen image zoom) function of BYINTEK K18 Smart Version?

Operation instruction video connection: https://youtu.be/OkCJ3kUTrS8

9. How to operate K18 Android to upgrade via network OTA?

Operation instruction video connection: https://youtu.be/2VocS93MvU

10. How to operate K18 Android to update firmware via U disk?

Operation instruction video connection: https://youtu.be/OL-kB6e73ek

11. How to operate K18 Android to update firmware via U disk?

Operation instruction video connection: https://youtu.be/3L6h9I2_ISA

12. IPhone wireless display to BYINTEK K18 Smart Version projector operation guide

Operation instruction video connection: https://youtu.be/e-ZTEcWMhqI

13. Android smartphone wireless display to BYINTEK K18 Smart Version projector operation guide

Operation instruction video connection: https://youtu.be/q-Yk6za9YV4

14. Where can I download the APP for K18 Smart Version android projector?

Operation instruction video connection: https://youtu.be/EVsJCCbVLLM

15. How to adjust the screen ratio of K18 Smart Version android projector?

Operation instruction video connection: https://youtu.be/iQq3kyBibMc

16. How to connect a windows system computer to the projector via HDMI cable?

       Operation instruction video connection: https://youtu.be/HynW24G6gBM

17. How to connect a macbook computer to the projector via HDMI cable?

Operation instruction video connection: https://youtu.be/5ooTcvK4RLI

18. How to solve Fire TV stick 4K connected to the projector to play movies no sound？

Turn off Dolby in the setting sound of Fire TV stick 4K.

         Step：”setting”—-“display&Sound”—“Audio”—“Dolby digital output”—“Dolby digital plus OFF”, Turn off Dolby，Do it a few times，Confirm whether Dolby is successfully turned off.

         Tips: Some sources can work normally without turning off Dolby and setting them to automatic mode. If there is still no sound in automatic mode, you must turn off Dolby.

K18 Series Projector Maintenance Guide

1. How to replace the dust filter of BYINTEK K18series projector?

Operation instruction video connection: https://youtu.be/MIfnXOcUxb4

2. Without disassembling the projector, how to clean the dust on the screen of BYINTEK K18series projector?

Operation instruction video connection: https://youtu.be/hGZ4_aHaFsA

3. Disassemble the projector to clean up the dust on the LCD and insulation glass of BYINTEK K18series projector

Operation instruction video connection: https://youtu.be/WBQBENg7Yhs

4. The LED light of BYINTEK K18series projector fails to light up. Check whether the cable connection is OK?

Operation instruction video connection:

5. Replace the power board of BYINTEK K18 series projector

Operation instruction video connection:

6. Replace the cooling fan of BYINTEK K18series projector

Operation instruction video connection:

7. Replace the motherboard of BYINTEK K18series projector

Operation instruction video connection:

8. BYINTEK K18series projector motherboard, LCD, power board, fan, lens, LED, speaker, placement video.

Operation instruction video connection:
